Cecomp Electronics FM Approved Intrinsically Safe Digital Pressure Gauges

Intrinsically Safe Battery Powered Digital Pressure Gauges

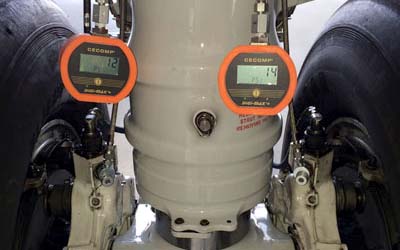

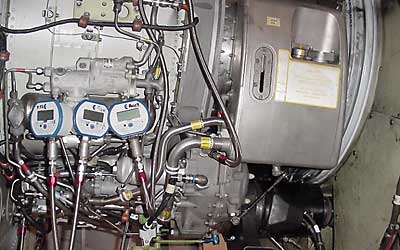

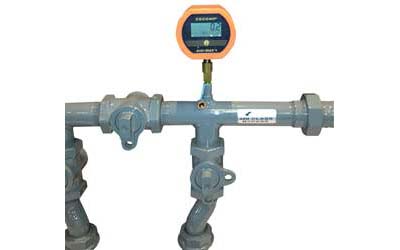

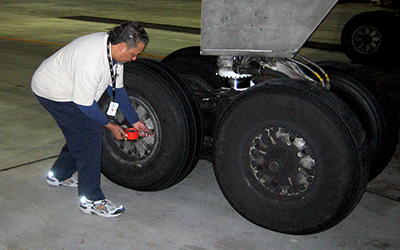

Features FM approved Class I, Div. 1, Grps A, B, C, D AAA battery powered ±0.25% test gauge accuracy Optional ±0.1% accuracy for some models and ranges 316 stainless steel sensor 1 year warranty Click on PDF links below for product information	Links Pressure conversion calculator Options & accessories Regulatory compliance FM Certificate of Compliance USA FM Certificate of Compliance Canada Applications Commercial aircraft tire and strut pressures Aircraft turbine engine service Natural gas delivery system pressures Oil and gas drilling and fracking Refineries, mines, chemical plants Natural gas pressure service kits for utilities Aircraft tire pressure Tube trailers Chemical plant Explosion doors Off road tires	How to select your product Open pdf datasheet for your model Select model, range, units, options, accessories Contact us if you need assistance Need a quote? Send an email to , or Get a quote via "Chat with us" below, or Call 800-942-0315 and ask for Sales	Ready to order? Email your order to If you don't have open terms with us, we'll call you for your credit card info Other ways to order Click here to set up an account Click here to find your authorized dealer or if you are outside the USA Call us to find your local authorized distributor
Model	Specifications/Ranges	Features	Product
Intrinsically Safe Battery Powered Digital Pressure Gauge Factory Configured DPG2000B $489 DPG2000BBL $519 Open Datasheet Download Datasheet Range Table Download Range Table FM approved Class I, Division 1, Groups A, B, C, D	±0.25% FS accuracy BL backlit display, battery life 150 to 1000 hrs Easy single button operation 3-1/2 digit display All metal housing Battery life to 1000 hrs Includes 2 AAA batteries Vacuum to 1999 psi ranges For ranges requiring 4 digits such as 3000 and 5000 psi, see DPG2000B D4 series Absolute reference available Choose auto shutoff time -5 five minutes -10 ten minutes	Engineering units available: psi, inHg, oz/in², inH₂O, ftH₂O, mmH₂O, cmH₂O, mmHg, Torr, g/cm², mbar, bar, kPa, MPa, atm, kg/cm² Externally accessible zero and span potentiometers All metal housing Optional top gauge port Boeing approved for aircraft tire pressure	DPG2000B
Intrinsically Safe Battery Powered Digital Pressure Gauge Digi-Max+ Min/Max or Max Memory Internal Button Configuration DPG2000B-D4 $529 DPG2000BBL-D4 $559 DPG2000B-D4-M0 $529 DPG2000BBL-D4-M0 $559 DPG2000B-D4-M1 $529 DPG2000BBL-D4-M1 $559 Open Datasheet Download Datasheet Range Table Download Range Table FM approved Class I, Division 1, Groups A, B, C, D	±0.25% FS accuracy HA: Optional ±0.1% FS high accuracy BL: Backlit display D4: Min/max memory D4-M0: Min/Max memory turned off D4-M1: Peak reading gauge Easy single button operation 4 digit display Microprocessor based All metal housing Battery life to 1000 hrs BL LED display backlight battery life to 150 to 1000 hrs Includes 2 AAA batteries Vacuum to 5000 psi ranges Absolute reference available User selectable auto shutoff time	Engineering units available: psi, inHg, oz/in², inH₂O, ftH₂O, mmH₂O, cmH₂O, mmHg, Torr, g/cm², mbar, bar, kPa, MPa, atm, kg/cm² Tamper-resistant internal buttons for setup Pass code protected setup and calibration All metal housing Optional top gauge port Boeing approved for aircraft strut pressure	DPG2000B-D4
Intrinsically Safe Battery Powered Digital Pressure Gauge Digi-Max+ Min/Max Memory Keypad Configuration DPG2000B-D4-M2 $529 DPG2000BBL-D4-M2 $559 Open Datasheet Download Datasheet Range Table Download Range Table FM approved Class I, Division 1, Groups A, B, C, D	±0.25% FS accuracy HA: Optional ±0.1% FS high accuracy BL: Backlit display D4-M2: Min/Max memory 3 button keypad 4 digit display Microprocessor based All metal housing Battery life to 1000 hrs BL LED display backlight battery life to 150 to 1000 hrs Includes 2 AAA batteries Vacuum to 5000 psi ranges Absolute reference available	Engineering units available: psi, inHg, oz/in², inH₂O, ftH₂O, mmH₂O, cmH₂O, mmHg, Torr, g/cm², mbar, bar, kPa, MPa, atm, kg/cm² Store min/max readings Selectable units and shutoff time Keypad setup and calibration with pass code protection All metal housing Optional top gauge port	DPG2000B-D4-M2
Intrinsically Safe Battery Powered Digital Pressure Gauge Digi-Max+ Memory Options Keypad Configuration DPG2000B-D4-M4 $529 DPG2000BBL-D4-M4 $559 DPG2000B-D4-M6 $529 DPG2000BBL-D4-M6 $559 DPG2000B-D4-M8 $529 DPG2000BBL-D4-M8 $559 Open Datasheet Download Datasheet Range Table Download Range Table FM approved Class I, Division 1, Groups A, B, C, D	±0.25% FS accuracy HA: Optional ±0.1% FS high accuracy in most ranges BL: backlit display D4-M4: 4 Max memory D4-M6: 6 Max memory D4-M8: 8 Max memory 3 button keypad 4 digit display Microprocessor based All metal housing Battery life to 1000 hrs BL LED display backlight battery life to 150 to 1000 hrs Includes 2 AAA batteries Vacuum to 5000 psi ranges Absolute reference available	Engineering units available: psi, inHg, oz/in², inH₂O, ftH₂O, mmH₂O, cmH₂O, mmHg, Torr, g/cm², mbar, bar, kPa, MPa, atm, kg/cm² Keypad setup and calibration with pass code protection All metal housing Optional top gauge port	DPG2000B-D4-Mx
Cecomp Heavy Duty Gauge Cases
Pelican^® Brand Cases DPG-OK2 DPG-OK3 DPG-OK6 This is a custom product, please call for price and lead time. Customize your kit by selecting gauges for your application. Popular for natural gas distribution service. Natural gas pressure service kits for utilities Open Cecomp Accessories Download Cecomp Accessories	Protect your gauges! Ideal for service kits Pelican® brand case High visibility orange Heavy duty and waterproof Custom heavy duty foam Storage for 2, 3, or 6 gauges Storage for fittings Use with Cecomp gauges with RB boot or NEMA 4X gauges Easy open double throw latches Solid wall design - strong, light weight O-ring seal Automatic pressure equalization valve Stainless steel padlock protectors Comfortable rubber over-molded handle	DPG-OK2 For 2 Cecomp Gauges 10.62" x 9.68" x 4.87" (27 x 24.6 x 12.4 cm)
		DPG-OK3 For 3 Cecomp Gauges 11.8" x 8.9" x 5.2" (30 x 22.5 x 13.2 cm)
		DPG-OK6 For 6 Cecomp Gauges 16.75" x 11.2" x 6.1" (42.5 x 28.4 x 15.5 cm)
Cecomp Gauge Rubber Boot Accessory
Orange Rubber Boot RB $29 Red Rubber Boot RRB $29 Open Cecomp Accessories Download Cecomp Accessories	Molded rubber boot for non-NEMA gauges	Molded flexible rubber Protects gauge appearance For Cecomp gauges except NEMA 4X models	RB
NIST Traceable Certification
NIST Certificate NC $125 Open Cecomp Accessories Download Cecomp Accessories	NIST Traceable Calibration Data 5 calibration points Test data Gauge model & serial number Date of test NC includes information on the NIST traceable calibration standard used	Note: To prevent a lost certificate, please instruct your receiving department to keep the certificate envelope with the gauge. Gauges can be returned to factory for recertification.	Click on images to enlarge
High Accuracy Option
High Accuracy -HA $90 Open Cecomp Accessories Download Cecomp Accessories	High accuracy option ±0.10% full scale ±1 least significant digit Standard with CTP1B and CTP3B May not be available with all models and all ranges See model datasheet or price list for availability	Standard accuracy ±0.25% full scale ±1 least significant digit	±0.10% -HA
Gauge Top Port Option
Top Gauge Port -TP $20 Open Cecomp Accessories Download Cecomp Accessories	Fitting on top of gauge instead of bottom Primarily for tire pressure applications Battery powered gauges only NOT for NEMA housing Must be factory installed	Available on non-NEMA battery powered models DPG1000B DPG2000B series ARM760B F16B F20B F22B	-TP
Cecomp Filter Screen SCR14SS
Filter Screen SCR14SS $59 Open Cecomp Accessories Download Cecomp Accessories	Filter screen fitting keeps debris out of gauge sensor Highly recommended for food vacuum packaging applications 303 SS body, 100 micron 304 SS screen	Fits any gauge with a 1/4 NPT fitting Pressure range: vacuum to 4000 psi 1/4 NPT female x 1/4 NPT male	SCR14SS
Cecomp Quick Connector CON14SS
Quick Connector CON14SS $169 Open Cecomp Accessories Download Cecomp Accessories	Quick connector allows installation or removal of gauge without tools 304 stainless steel, urethane seal	Fits any gauge with a 1/4 NPT fitting Pressure range: vacuum to 5000 psi 1/4 NPT female x 1/4 NPT male	CON14SS
Panel Mounting Option
Panel Mount -PM $50 Open Cecomp Accessories Download Cecomp Accessories	Panel mounting flange, 4.1" x 4.1" Fits standard quarter DIN opening (92 mm x 92 mm) or a 3.5" to 4" diameter circular opening Dimensional drawing	NOT for NEMA housing Must be factory installed	-PM
